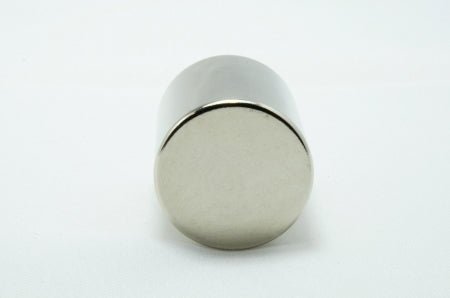

Neodymium Cylinder Magnet - 22mm x 25.4mm

Product code: 21010

$39.33for 1 to 9 items
$35.27buy 10 to 99 itemsand save 10%
$29.48buy 100+ itemsand save 25%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 22mm x 25.4mm

Rated 5.0 out of 5
1 Review
Product Code 21010
Pull Force* 19.05kg
Weight 71 gm
Style Neodymium Cylinder magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:25.4mm, Diameter:22mm

Magnetic Product Description:

This rare earth cylinder has a diameter of 22 mm and a height of 25.4mm or one inch. It has a magnetic flux reading of 5781 Gauss and a pull force of 19.05 kilos. Its part number is 21010.

Uses for our rare earth cylinder magnets:

The dimensions of this strong Neodymium Cylinder and the location of small, flat pole surfaces at each end make it easy to handle and easy to manoeuvre. Cylinder shaped magnets naturally condense their power to the flat pole surface and produce a narrow but deep magnetic field. This field type is not ideal for metal retrieval applications but is very practical in metal detection and industrial processes like water filtration and purification. Leverage provided by the cylindrical shape helps the user in various  holding related situations to break the magnetic bond as circumstances arise, such as when frequent relocation or repeated removal is required

Neodymium Cylinder Magnet - 22mm x 25.4mm (21010)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Steven P.
I recommend this product
Rated 5 out of 5
Review posted

Magnets used to attach RC body to chassis.

The Neodymium Ring magnets worked great holding the body of my remote control car to the chassis without using ugly body pins.
