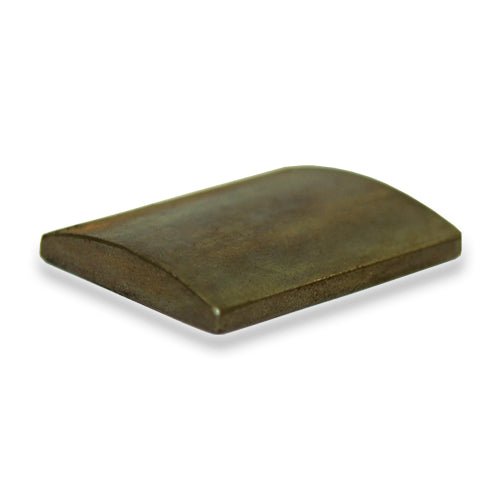

Neodymium Block Magnet with Partial Ovoid - 38mm x 29mm x (3-5.8mm) | Phosphorus Coating

Product code: 22006C

$42.12for 1 to 9 items
$35.11buy 10 to 99 itemsand save 17%
$30.42buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet with Partial Ovoid - 38mm x 29mm x (3-5.8mm) | Phosphorus Coating

Product Code 22006C
Weight 10 gm
Style Neodymium Block-Ovoid
Coating Phosphorous
Direction of Magnetisation Axially magnetised
Dimensions Width:29mm, Height:3 to 5.8mm, Length:38mm

Magnetic Product Description:

This unusual partial ovoid block magnet has a length of 38mm times a width of 29mm times an ovoid thickness between 3 to 5.8mm. It has the AMF magnet part number 22006C.

Uses for our rare earth block magnets:

Magnets like these neodymium blocks were installed in film projectors to regulate or modify the movement of metallic parts and produce smooth, continuous images. The speed at which individual frames containing the filmic images passes over the projector’s light beam is vital. Moving images moving too fast or too slow disorients the viewer, distorting the cinematic images and the sense of reality they are trying to project. In times gone by magnets like these enhanced the cinematic viewing experience by helping to provide clear, continuous footage during projection. They were largely responsible for the quality images and production values we came to appreciate in the pre-digital age.

Rare earth block magnets express instinctive or intuitive magnetic power and influence metallic components to move, but only at the pull force determined by the magnet’s inherent strength which is usually a function of its size.

We originally had this magnet manufactured for the Film & Cinema industry. It is used in part of the componentry that makes up a film projector used in the older style cinemas of the past. These particular movie projectors are still used to this day and we believe there are several hundred in operation worldwide. We presently have about seven hundred pieces in stock and will not be replacing this size once all stock has been sold.

Neodymium Block Magnet with Partial Ovoid - 38mm x 29mm x (3-5.8mm) | Phosphorus Coating (22006C)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
