Neodymium Block Magnet - 6mm x 6mm x 3mm | N48

Product code: B-W6H3L6-N48

$1.02for 1 to 9 items
$0.95buy 10 to 99 itemsand save 6%
$0.72buy 100+ itemsand save 29%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 6mm x 6mm x 3mm | N48

Product Code B-W6H3L6-N48
Pull Force* 1.388kg
Weight 3 gm
Style Rare Earth Block
Coating Nickel (Ni)
Direction of Magnetisation Axially (through height)
Dimensions Width:3mm, Height:6mm, Length:6mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

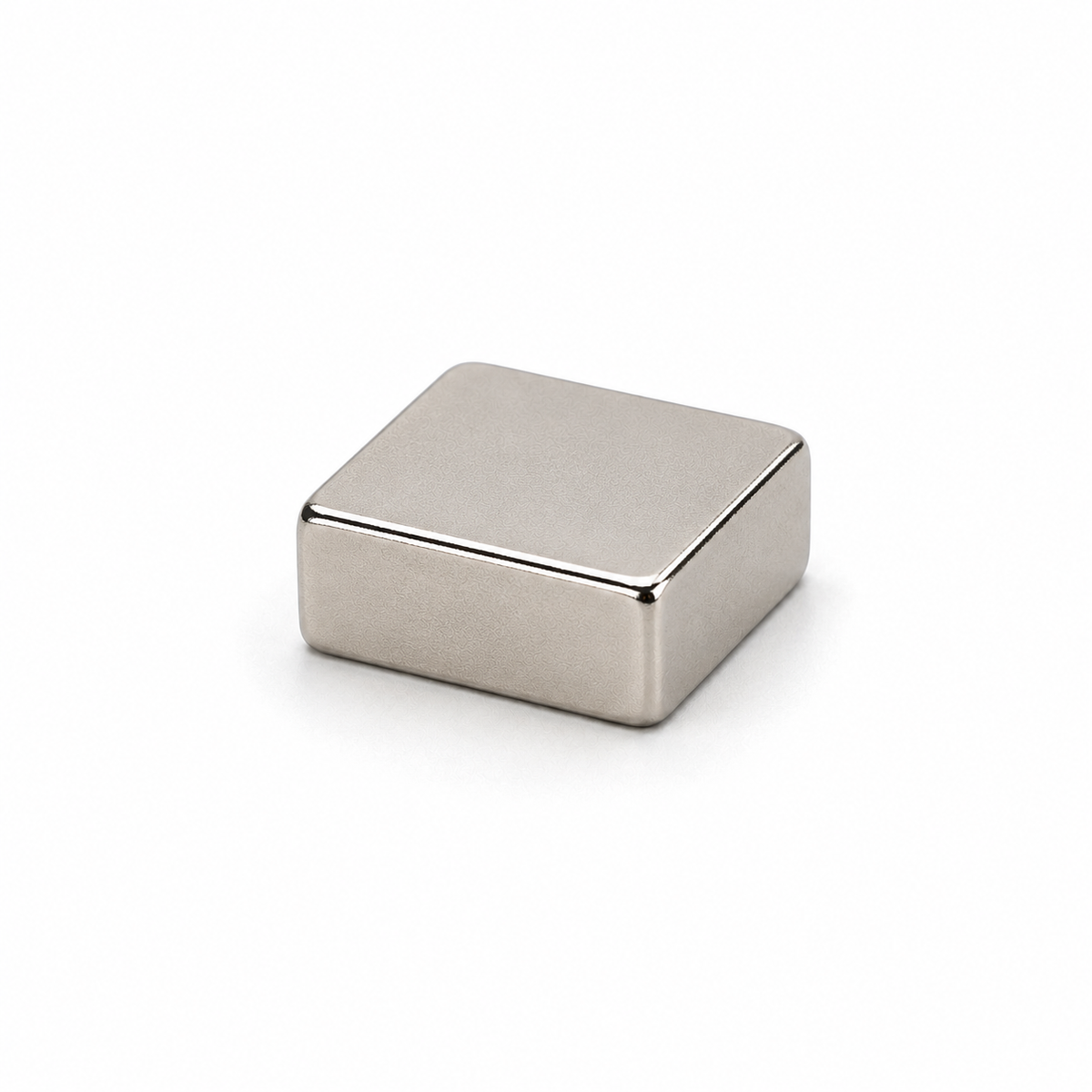

This neodymium magnetic block has a length of 6mm, width of 6mm and a height of 3mm. It has a magnetic flux reading of 6396 Gauss and a pull force of 1.38 kilos. It is identified by the AMF magnet part number B-W6H3L6-N48.

Uses for our rare earth block magnets:

This square Neodymium Block is magnetically strong for its size and has a slim 3mm height dimension that allows it to operate inside the cover of a product or to be concealed inside a device where the magnetic field can operate discreetly and without an obvious visual presence. This is one of the most appealing aspects of magnetic power. The invisible magnetic field creates a bond with ferrous metal, or another magnet, that is permanent, predictable and extremely reliable. More traditional mechanical or adhesive forms of attachment are invasive, unattractive and over extended periods of time, can become faulty and unreliable. In terms of long-term performance, magnetism offers considerable cost-savings. Small square magnets are often used to act as clamps, clasps, joins, closures and attachment points for creative craft projects and also in practical and innovative commercial designs

Neodymium Block Magnet - 6mm x 6mm x 3mm | N48 (B-W6H3L6-N48)

Grade
N48 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.37-1.43 N/A
Coercivity
13.7-14.3>=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N48 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.37-1.43 N/A
Coercivity 13.7-14.3>=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A

Magnetic Product Description:

This neodymium magnetic block has a length of 6mm, width of 6mm and a height of 3mm. It has a magnetic flux reading of 6396 Gauss and a pull force of 1.38 kilos. It is identified by the AMF magnet part number B-W6H3L6-N48.

Uses for our rare earth block magnets:

This square Neodymium Block is magnetically strong for its size and has a slim 3mm height dimension that allows it to operate inside the cover of a product or to be concealed inside a device where the magnetic field can operate discreetly and without an obvious visual presence. This is one of the most appealing aspects of magnetic power. The invisible magnetic field creates a bond with ferrous metal, or another magnet, that is permanent, predictable and extremely reliable. More traditional mechanical or adhesive forms of attachment are invasive, unattractive and over extended periods of time, can become faulty and unreliable. In terms of long-term performance, magnetism offers considerable cost-savings. Small square magnets are often used to act as clamps, clasps, joins, closures and attachment points for creative craft projects and also in practical and innovative commercial designs

Neodymium Block Magnet - 6mm x 6mm x 3mm | N48 (B-W6H3L6-N48)

Grade
N48 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.37-1.43 N/A
Coercivity
13.7-14.3>=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N48 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.37-1.43 N/A
Coercivity 13.7-14.3>=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A
