Neodymium Block Magnet - 5mm x 5mm x 5mm | N50

Product code: B-W5H5L5-N50

$0.85for 1 to 9 items
$0.78buy 10 to 99 itemsand save 8%
$0.72buy 100+ itemsand save 15%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 5mm x 5mm x 5mm | N50

Product Code B-W5H5L5-N50
Pull Force* 2.03g
Weight 8 gm
Style Neodymium Block
Coating Nickel (Ni)
Direction of Magnetisation Axially
Dimensions Width:5mm, Height:5mm, Length:5mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

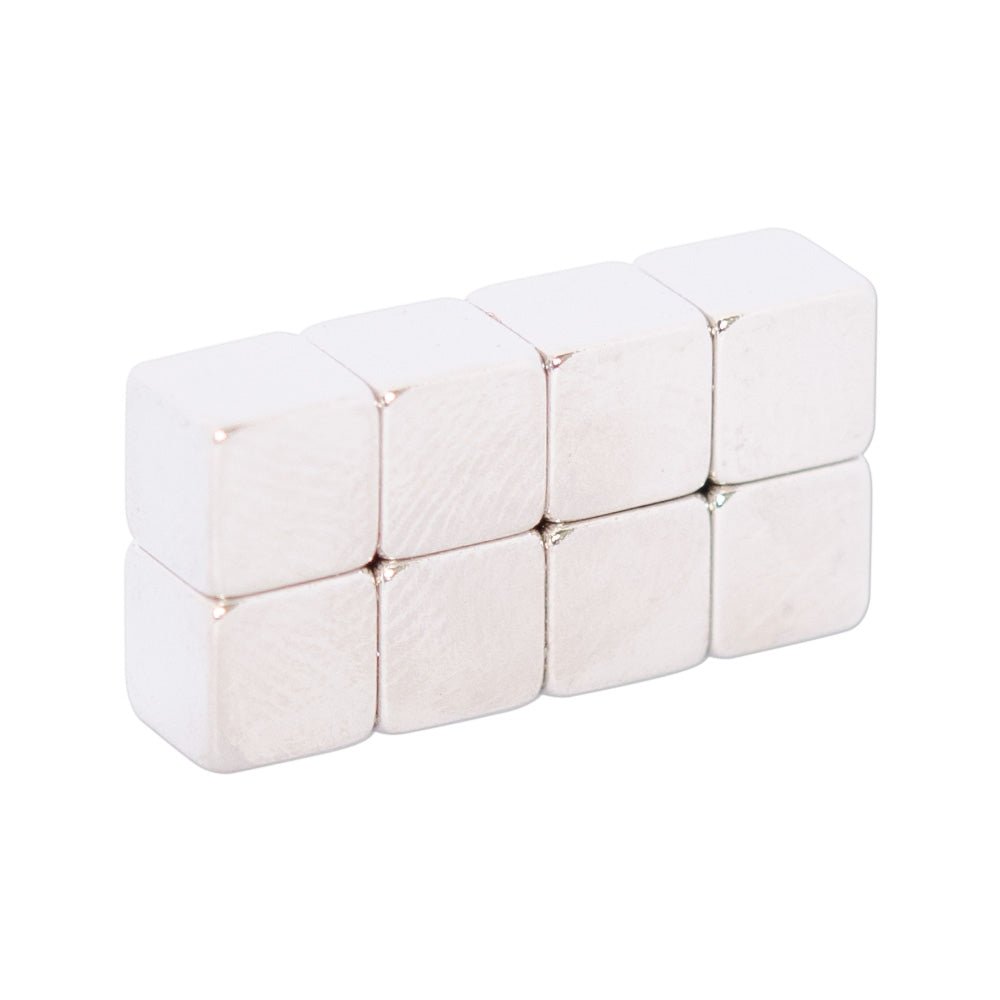

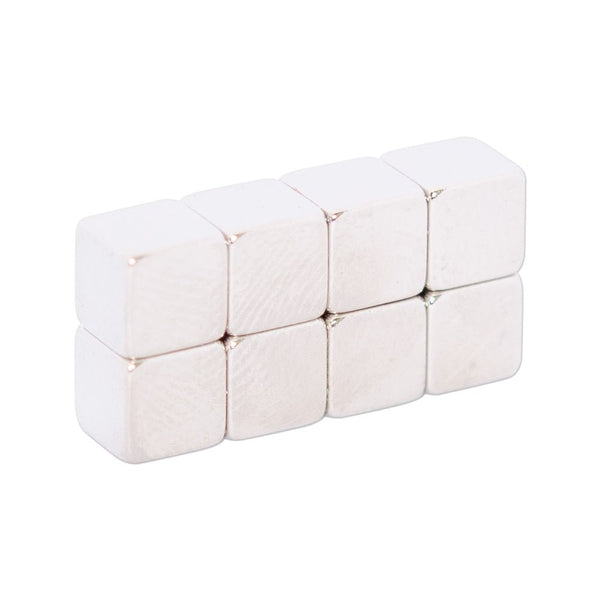

This rare earth block magnet has a length of 5mm, a width of 5mm and a thickness of 5mm. It is identified by the AMF magnet part number B-W5H5L5-N50.

Uses for our rare earth block magnets:

This small Neodymium block magnet is a perfect cube of magnetic power. There is something incredibly enticing about the perfect symmetry of a cube and it is no surprise these little magnets are popular with our customers. Cubes are also practical as the equal dimensions remove the need to double check the measurements and orientation when fixing or tooling the magnet into position. The powerful magnetic material used in manufacturing this magnet is not only the strongest type of magnetic material, Neodymium, it is also made from the second highest grade. This magnetic block has a silver finish courtesy of the Nickel coating that serves to protect the magnet from corrosion in standard atmospheric conditions. For applications that are inclined to encounter humid environments, there are alternative coatings such as gold and Teflon that provide a higher level of resistance to humidity than the standard Nickel.

Neodymium Block Magnet - 5mm x 5mm x 5mm | N50 (B-W5H5L5-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A

Magnetic Product Description:

This rare earth block magnet has a length of 5mm, a width of 5mm and a thickness of 5mm. It is identified by the AMF magnet part number B-W5H5L5-N50.

Uses for our rare earth block magnets:

This small Neodymium block magnet is a perfect cube of magnetic power. There is something incredibly enticing about the perfect symmetry of a cube and it is no surprise these little magnets are popular with our customers. Cubes are also practical as the equal dimensions remove the need to double check the measurements and orientation when fixing or tooling the magnet into position. The powerful magnetic material used in manufacturing this magnet is not only the strongest type of magnetic material, Neodymium, it is also made from the second highest grade. This magnetic block has a silver finish courtesy of the Nickel coating that serves to protect the magnet from corrosion in standard atmospheric conditions. For applications that are inclined to encounter humid environments, there are alternative coatings such as gold and Teflon that provide a higher level of resistance to humidity than the standard Nickel.

Neodymium Block Magnet - 5mm x 5mm x 5mm | N50 (B-W5H5L5-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A
