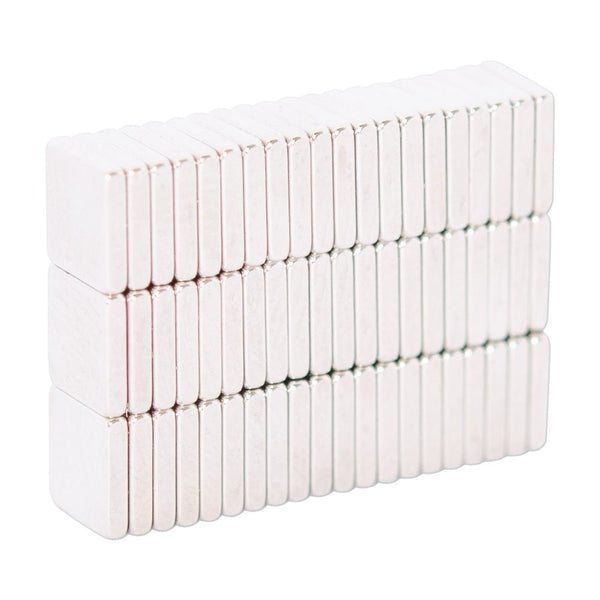

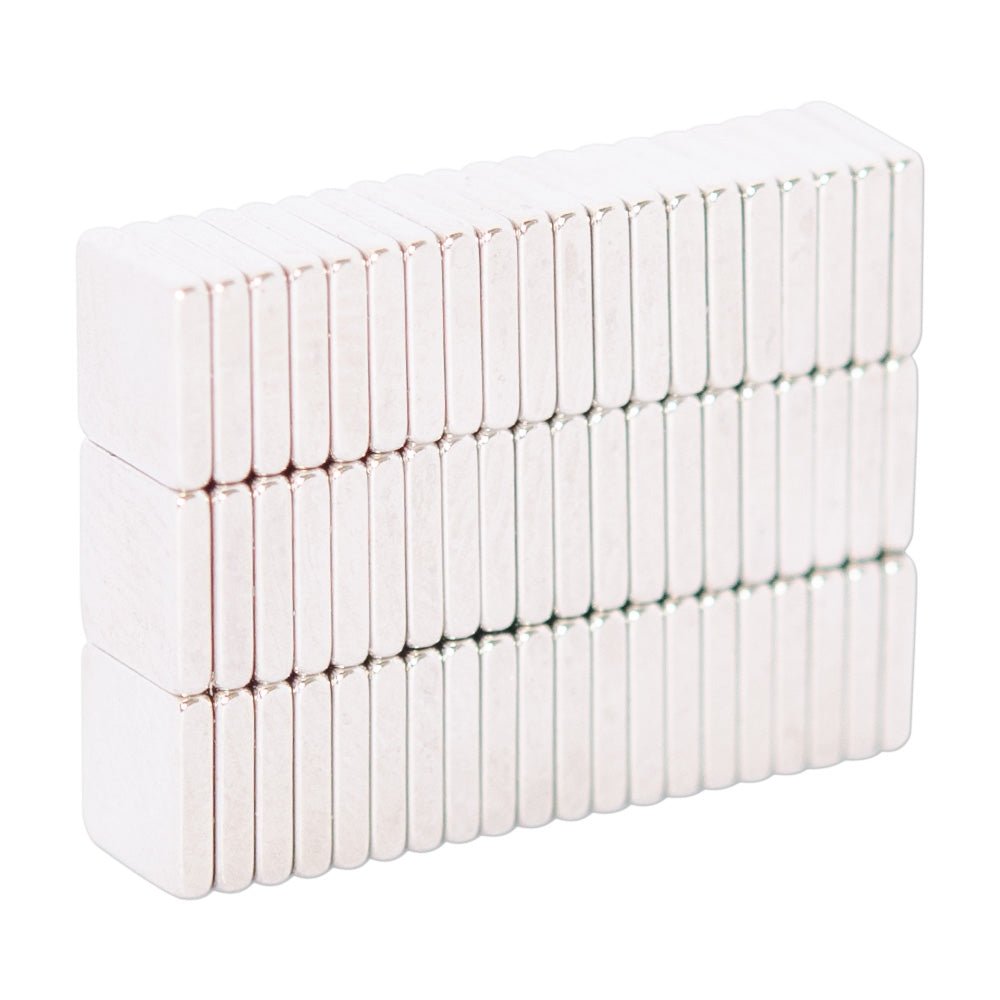

Neodymium Block Magnet - 5mm x 5mm x 1mm | N50

Product code: B-W5H1L5-N50

$1.02for 1 to 9 items
$0.85buy 10 to 99 itemsand save 16%
$0.75buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 5mm x 5mm x 1mm | N50

Product Code B-W5H1L5-N50
Pull Force* 0.312kg
Weight 2 gm
Style Neodymium Block
Coating Nickel (Ni)
Direction of Magnetisation Axially
Dimensions Width:5mm, Height:1mm, Length:5mm

Magnetic Product Description:

This rare earth block magnet has a length of 5mm, a width of 5mm and a height of 1mm. It is identified by the AMF magnet part number B-W5H1L5-N50.

Uses for our Rare Earth block magnets:

Neodymium block magnets come in a large array of sizes that can also be described as cubes squares or rectangular magnets. As these products are made from super strong Neodymium magnetic material, these rare earth blocks are the strongest type of permanent magnet available on the market. There are many different grades of rare earth magnets and this particular block is N50, being the second highest Neodymium strength available. Small square magnets such as these are ideal woodworking and other fine crafts. Although small and lightweight they provide a surprisingly strong magnetic attraction which makes them suitable for a wide range of applications.

Neodymium Block Magnet - 5mm x 5mm x 1mm | N50 (B-W5H1L5-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50
Max Operating Temperature °C <=80
Remanence 1.4-1.46
Coercivity 14-14.6 >=836
Intrinsic Coercivity >=10.5
Max Energy Product >=875

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
