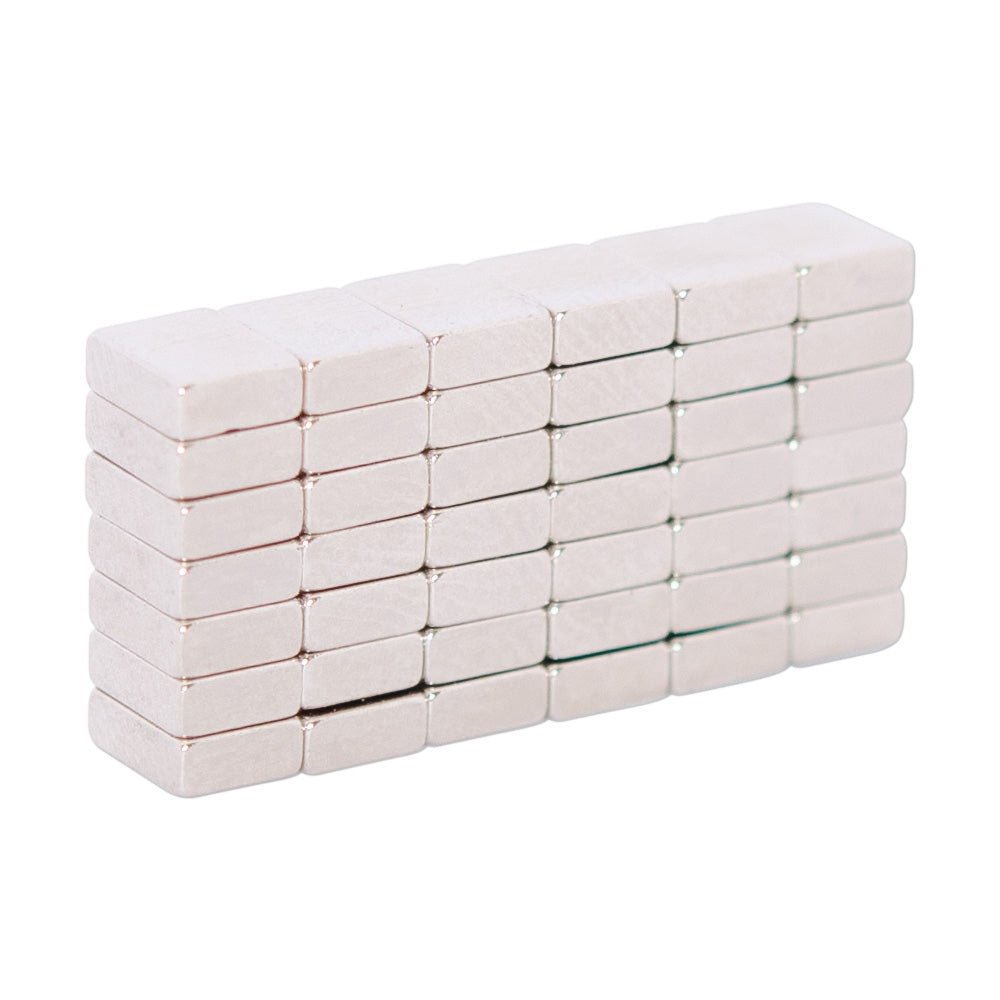

Neodymium Block Magnet - 5mm x 1.7mm x 4mm | N50

Product code: B-W1.7H4L5-N50

$0.64for 1 to 9 items
$0.48buy 10 to 99 itemsand save 25%
$0.38buy 100+ itemsand save 41%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 5mm x 1.7mm x 4mm | N50

Product Code B-W1.7H4L5-N50
Pull Force* 0.430 kg
Weight 1 gm
Style Rare Earth Block
Coating Nickel (Ni)
Direction of Magnetisation Through height
Dimensions Width:1.7mm, Height:4mm, Length:5mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This block magnet is magnetised axially through the 4mm thickness and contains powerful N50 Grade Neodymium material that provides 0.43kg of pull-force. The nickel-plated coating significantly improves durability and this block emits a surface gauss reading of 6740G.

Uses for our Rare Earth Block Magnets:

Small Neodymium magnets are used to miniaturise the microphones and speakers in our smartphones and many other high-tech devices that send and receive sound. Tiny magnets inside the microphone of the device act as transducers that convert sound wave vibrations in the air into electrical currents. These electrical signals can then be transmitted, amplified or recorded. Loudspeakers, such as PA systems, use this principle in reverse to convert electric signals into amplified audible sound waves. Most intercom systems and two-way radio transmitters operate using small permanent magnets in the microphone and speaker that are sturdy and reliable for outdoor use. Highly technical microdevices in medicine and electronics use tiny permanent magnets to actuate processes remotely and without the friction that reduces long term reliability in larger, more mechanised devices. Many warning and safety sensors utilise tiny magnets to detect movement and proximity that can indicate pressures and temperatures that may be approaching dangerous levels. Neodymium magnets have impacted many engineering and scientific methodologies and have helped to initiate the research and development of completely new ones.

Neodymium Block Magnet - 5mm x 1.7mm x 4mm | N50 (B-W1.7H4L5-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A

Magnetic Product Description:

This block magnet is magnetised axially through the 4mm thickness and contains powerful N50 Grade Neodymium material that provides 0.43kg of pull-force. The nickel-plated coating significantly improves durability and this block emits a surface gauss reading of 6740G.

Uses for our Rare Earth Block Magnets:

Small Neodymium magnets are used to miniaturise the microphones and speakers in our smartphones and many other high-tech devices that send and receive sound. Tiny magnets inside the microphone of the device act as transducers that convert sound wave vibrations in the air into electrical currents. These electrical signals can then be transmitted, amplified or recorded. Loudspeakers, such as PA systems, use this principle in reverse to convert electric signals into amplified audible sound waves. Most intercom systems and two-way radio transmitters operate using small permanent magnets in the microphone and speaker that are sturdy and reliable for outdoor use. Highly technical microdevices in medicine and electronics use tiny permanent magnets to actuate processes remotely and without the friction that reduces long term reliability in larger, more mechanised devices. Many warning and safety sensors utilise tiny magnets to detect movement and proximity that can indicate pressures and temperatures that may be approaching dangerous levels. Neodymium magnets have impacted many engineering and scientific methodologies and have helped to initiate the research and development of completely new ones.

Neodymium Block Magnet - 5mm x 1.7mm x 4mm | N50 (B-W1.7H4L5-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A
