Neodymium Block Magnet - 30mm x 10mm x 5mm | N35

Product code: B-W10H5L30-N35

$8.59for 1 to 9 items
$7.54buy 10 to 99 itemsand save 12%
$6.36buy 100+ itemsand save 26%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 30mm x 10mm x 5mm | N35

Product Code B-W10H5L30-N35
Pull Force* 6.2 Kg
Weight 20 gm
Style Rare Earth Block
Coating Nickel
Direction of Magnetisation Axially (through height)
Dimensions Width:10mm, Height:5mm, Length:30mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This neodymium magnetic block has a length of 30mm, width of 10mm and a height of 5mm. It has a pull force of 6.2 kilos. It is identified by the AMF magnet part number B-W10H5L30-N35.

Uses for our rare earth block magnets:

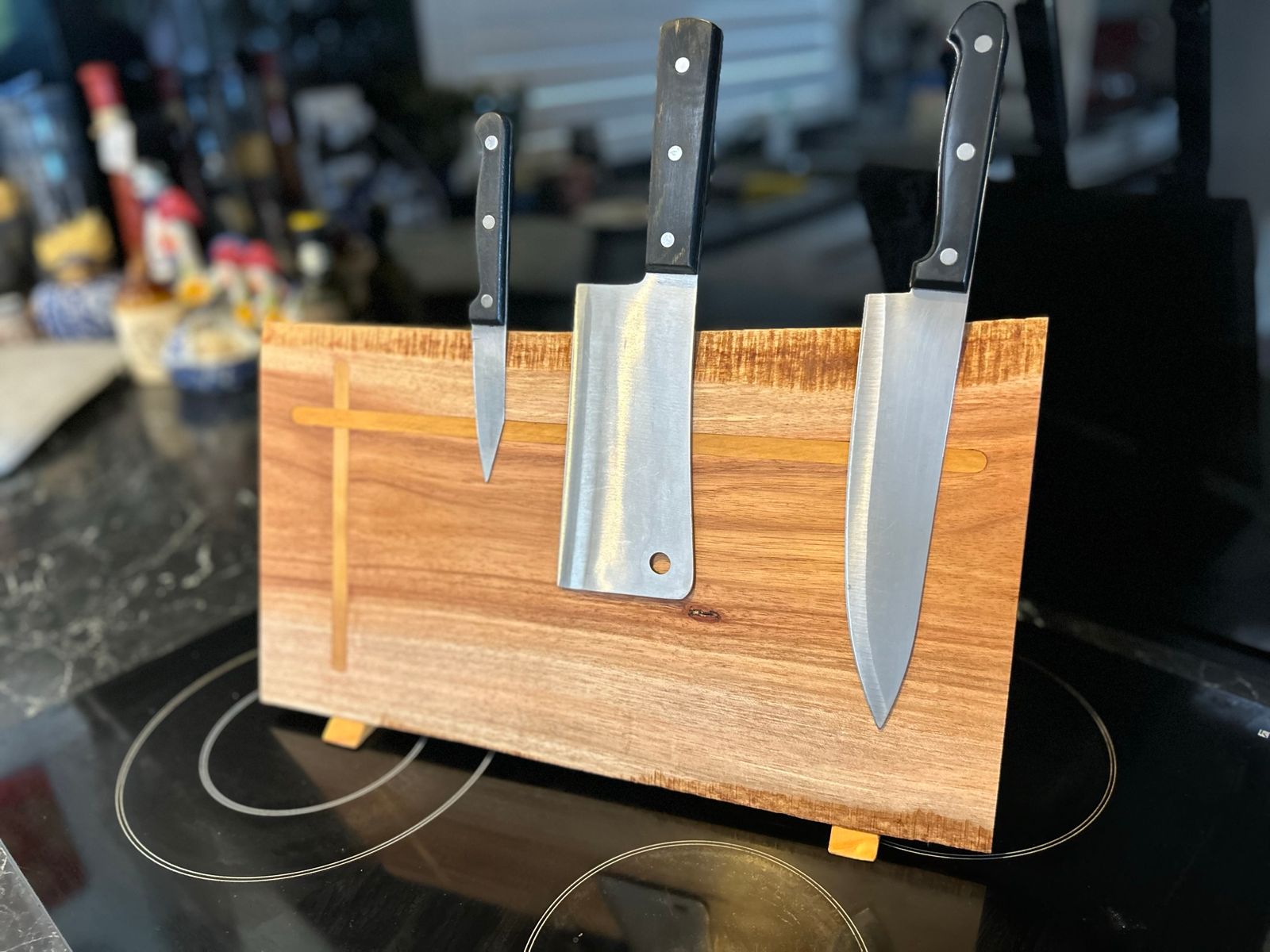

Rectangular magnets or block magnets, such as this N35 example are commonly used as a component part within magnetic knife holders and tool holders along with a range of other magnetic holding devices. Block magnets are normally axially magnetised through the height, so the largest surface area is typically where the north and south poles are present. These large rectangular pole surfaces provide a larger contact area for a secure bond with metallic materials.

Magnets are a surprisingly brittle material and as such, they are often encased within a steel case or housing to protect them. This is certainly the case with commercial products designed for holding applications as these usually incur a considerable amount of impact during use and need to be durable. Most holding devices consist of multiple bar magnets placed end to end inside a metal or plastic channel to increase the contact area and holding capacity of assemblies such as tool holders and magnetic sweepers. The magnetic field of such items needs to be as broad as possible in order to remove hazardous metal debris and swarf from workshop and factory floors.

Neodymium magnets are the strongest type of permanent magnet available however they are not always the best choice for every application. If a larger surface area of magnetic hold is required it may be more appropriate to choose a Ferrite block. Depending on the strength of magnetic field required versus the need for breadth of field, a Neodymium block such as these may be best.

Neodymium Block Magnet - 30mm x 10mm x 5mm | N35 (B-W10H5L30-N35)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
