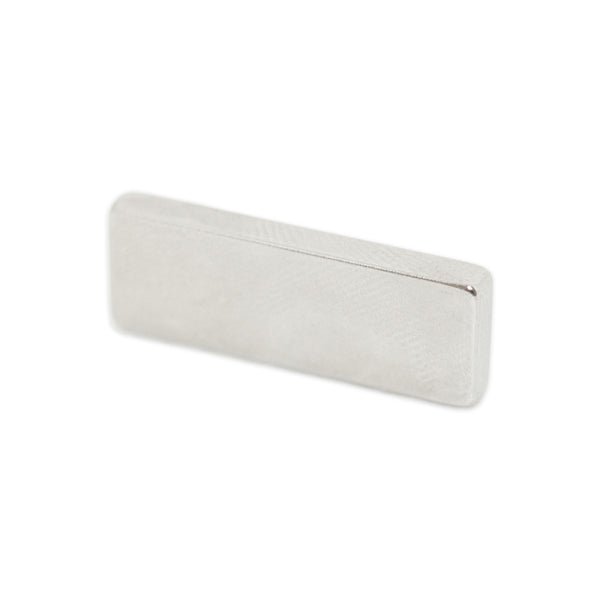

Neodymium Block - 25mm x 9mm x 3mm

Product code: 22020

$5.15for 1 to 9 items
$4.09buy 10 to 99 itemsand save 21%
$3.52buy 100+ itemsand save 32%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block - 25mm x 9mm x 3mm

Rated 4.5 out of 5
Based on 2 reviews
Product Code 22020
Pull Force* 3.3 kg
Weight 5 gm
Style Neodymium Block magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Width:9mm, Height:3mm, Length:25mm

Magnetic Product Description:

This block magnet has a length of 25mm, a height of 3mm and a width of 9mm with a magnetic flux reading of 2520 Gauss. It has a pull force of 3.3 kg and is identified by the AMF magnet part number 22020.

Uses for our rare earth block magnets:

Strong Neodymium Block Magnets of this type have enabled Sign companies to stay at the forefront of their rapidly changing industry by using the latest technologies. When placed around the edge of a metal sign box these thin, strong magnets enable quick and simple removal of clear covers for cleaning or replacement of advertising graphics as new campaigns commence. Typical companies that use this product are associated with illuminated and digital signs, menu and display boards and advertising light boxes. This magnet is also popular with fabricators of fixed and removable perspex company signage.

Neodymium Block - 25mm x 9mm x 3mm (22020)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.09-1.17 N/A
Coercivity
12.3-13>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N38
Max Operating Temperature °C <=80
Remanence 1.09-1.17
Coercivity 12.3-13>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.5 out of 5
Based on 2 reviews
  • 5 Stars
    1 Review
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by rick
I recommend this product
Rated 4 out of 5
Review posted

quick delivery

replacing old ferrite magnets in wind turbine with neodymium, wish you had 50 mm by 50mm by 3 or 4 mm.

Loading...
Was this helpful?
Reviewed by Ef
I recommend this product
Rated 5 out of 5
Review posted

Happy customer

Great range of products and great service. I've bought magnets from them 4 times.

Loading...
Was this helpful?
