Product code: RCND66M

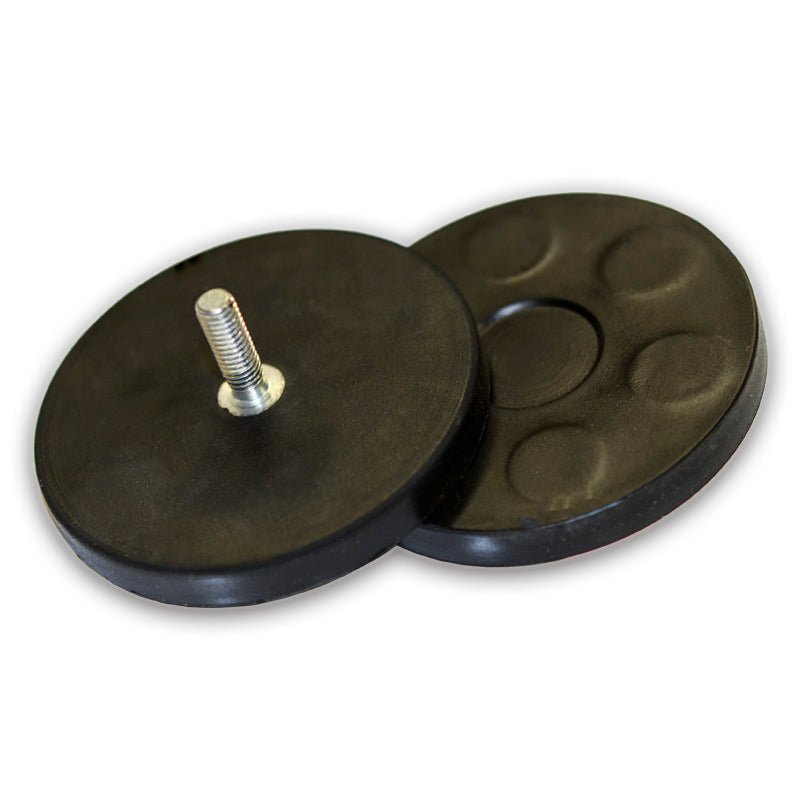

With Neodymium magnetic core, this product has a strong pull force of 18kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 66mm, a 8mm thickness, 15mm high M8 male threaded and external boss. The product is identified by AMF Part Number RCND66M.
Rubber Coated Neodymium Disc magnets can be placed onto the frames of metal doors and windows of buildings during construction and enable sheets of ply or similar products to be secured with a nut to the bolt protruding from the magnet. This temporary method of closure keeps out unauthorised visitors and the weather. Closing building openings in this manner allow the glazing works to be deferred to the end of the construction project at a time when it is safer for these valuable materials that are easily scratched, stained or cracked. These Pot magnets are also used in conjunction with glass and plastic materials. The rubber coating protects the glass and, while magnets will not cling to glass,, these magnets will cling to each other through glass and also Perspex materials, Event coordinators often need to secure decorations, signage, fabrics or arrangements of flowers to glass surfaces for special events and these holding pot magnets do this in a secure way that protects the glass from damage.
These Male Threaded Holding Pot magnets can be attached to any material using a hexagonal nut. These high strength Neodymium magnets are capped on one side with steel for extra holding ability and are also encapsulated in a durable Santoprene rubber casing that protects delicate surfaces.
Male Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with 15mm Boss and Rubber Case (RCND66M)
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
With Neodymium magnetic core, this product has a strong pull force of 18kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 66mm, a 8mm thickness, 15mm high M8 male threaded and external boss. The product is identified by AMF Part Number RCND66M.
Rubber Coated Neodymium Disc magnets can be placed onto the frames of metal doors and windows of buildings during construction and enable sheets of ply or similar products to be secured with a nut to the bolt protruding from the magnet. This temporary method of closure keeps out unauthorised visitors and the weather. Closing building openings in this manner allow the glazing works to be deferred to the end of the construction project at a time when it is safer for these valuable materials that are easily scratched, stained or cracked. These Pot magnets are also used in conjunction with glass and plastic materials. The rubber coating protects the glass and, while magnets will not cling to glass,, these magnets will cling to each other through glass and also Perspex materials, Event coordinators often need to secure decorations, signage, fabrics or arrangements of flowers to glass surfaces for special events and these holding pot magnets do this in a secure way that protects the glass from damage.
These Male Threaded Holding Pot magnets can be attached to any material using a hexagonal nut. These high strength Neodymium magnets are capped on one side with steel for extra holding ability and are also encapsulated in a durable Santoprene rubber casing that protects delicate surfaces.
Male Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with 15mm Boss and Rubber Case (RCND66M)
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
