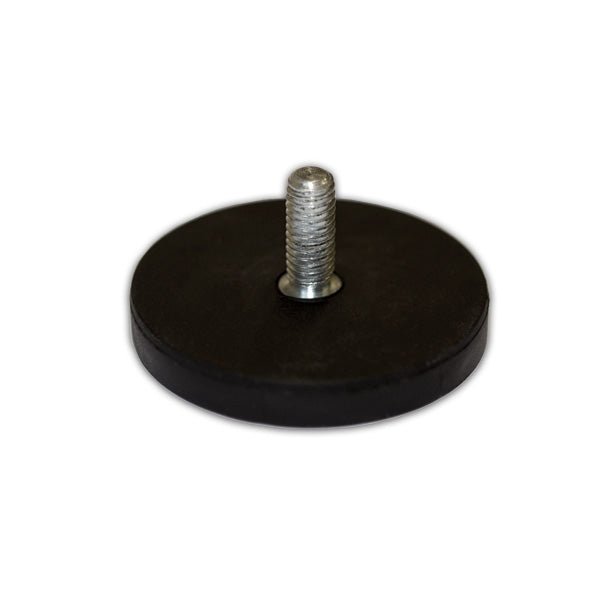

Male Thread Neodymium Pot Magnet - Diameter 43mm x 6mm with 14mm Boss and Rubber Case
Product code: RCND43M
Male Thread Neodymium Pot Magnet - Diameter 43mm x 6mm with 14mm Boss and Rubber Case
Magnetic Product Description
With a Neodymium magnetic core, this product has a strong pull force of 9kg and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 43mm, a 6mm thickness, 14mm high M5 male threaded and external boss. The product is identified by AMF Part Number RCND43M.
Uses for our Male Thread Neodymium Pots with Rubber Casing:
These Male Threaded holding pot magnets can be attached to any material with a hexagonal nut. These high strength magnets have a steel capping that increases holding strength to the base and are then covered in a durable Rubber Casing to prevent damage to delicate surface areas. They also have excellent resistance to moisture and corrosion.
Male Thread Neodymium Pot Magnet - Diameter 43mm x 6mm with 14mm Boss and Rubber Case (RCND43M)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence | |
| 1.18-1.25 | N/A |
| Coercivity | |
| 11.8-12.5>=859 | N/A |
| Intrinsic Coercivity | |
| >=10.8 | N/A |
| Max Energy Product | |
| >=955 | N/A |
| Grade | N35 |
| Max Operating Temperature °C | <=80 |
| Remanence | 1.18-1.25 |
| Coercivity | 11.8-12.5>=859 |
| Intrinsic Coercivity | >=10.8 |
| Max Energy Product | >=955 |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
