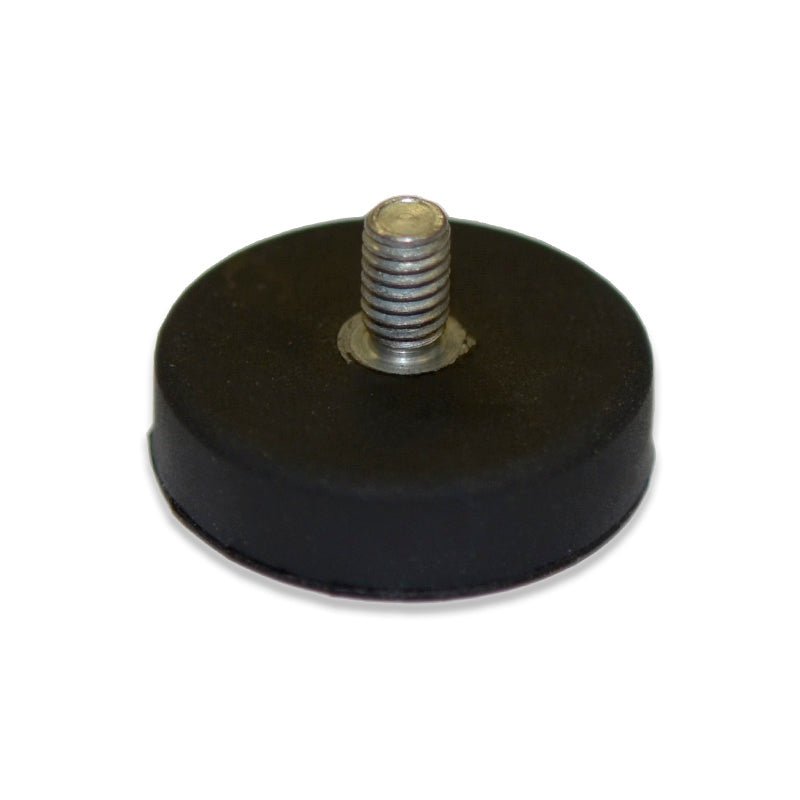

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case

Product code: RCND22M

$8.43for 1 to 9 items
$7.27buy 10+ itemsand save 13%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case

Rated 5.0 out of 5
1 Review
Product Code RCND22M
Pull Force* 5kg
Weight 10 gm
Coating Santoprene Rubber
Direction of Magnetisation Axially (through 6mm)
Dimensions Thickness:6mm, Diameter:22mm

Magnetic Product Description

With Neodymium magnetic core, this product has a strong pull force of 5kg and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 22mm, a 6mm thickness, 6mm high M4 male threaded and external boss. The product is identified by AMF Part Number RCND22M.

Uses for our Male Thread Neodymium Pots with Rubber Casing:

Our Male Threaded Rare Earth holding pot magnets can be attached to other materials with a hexagonal nut. These high strength magnets have a steel capping on one side to increase holding strength at the base and are then encapsulated in a durable Rubber Coating to protect delicate surfaces or painted areas from damage.

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case (RCND22M)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Dora D.
I recommend this product
Rated 5 out of 5
Review posted

Quality magnets

We make beautiful designer security doors in NZ and haven't found a product that works as well and does the job like these magnets in our country. We particularly like the rubber coating to protect the powder coating and also from damage on clients homes. Our magnets are used to stop the security doors from banging against house or when shut the client does not have to key their deadlock each time. The magnet holds our doors beautifully in place!
