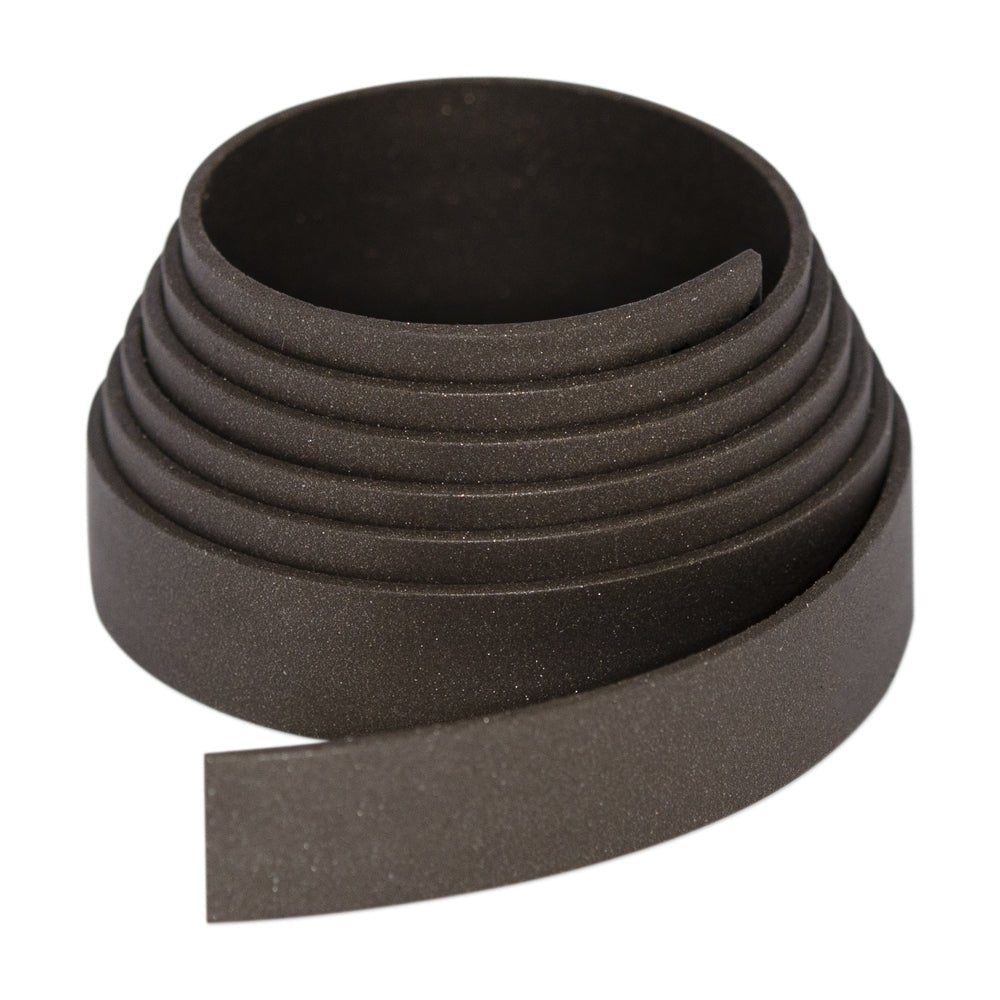

Magnetic Strip Neodymium - 12.5mm x 1.5mm | Non-Adhesive | PER METRE | Supplied As Continuous Length

Product code: 59185

$40.58for 1 to 9 items
$35.16buy 10 to 99 itemsand save 13%
$29.74buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Magnetic Strip Neodymium - 12.5mm x 1.5mm | Non-Adhesive | PER METRE | Supplied As Continuous Length

Rated 4.4 out of 5
Based on 7 reviews
Product Code 59185
Pull Force* 450 g/cm²
Weight 210 gm
Style Rare Earth non-adhesive Strip magnet
Dimensions Thickness:1.5mm, Width:12.5mm, Length:1metre

Magnetic Product Description:

Made using neodymium powder, this flexible magnetic strip is the strongest magnetic tape we have. This Rare Earth magnetic strip has a width of 12.5mm, a thickness of 1.5mm and a length of 1 metre. Identified by the AMF magnet part number 59185.

Uses for our rare earth non-adhesive tape magnets:

This magnetic tape product is precut into 1-metre lengths only and is  NON-ADHESIVE so where non-metallic surfaces are involved, a contact adhesive glue is required. Marketed with the name 'NEO FLEX' this is a relatively NEW product in the world of Magnets and combines the super magnetic power of Neodymium with rubber to create a new level of holding power while retaining flexibility. The addition of Rare Earth (Neodymium) materials greatly increases magnetic strength but also increases the manufacturing cost and as a result, the retail price  Made from Neodymium powder within a polymer matrix, this Magnet Strip is the strongest of our flexible magnetic tapes. These magnetic non-adhesive strips play useful holding and easy release functions in industries associated with signage, displays and exhibitions.

This Neodymium magnetic strip is the "Duct tape" of magnets and is ideal for use where Ferrite tapes lack the required magnetic strength. Typical uses include securing and displaying heavy items up to 2 kgs such as banners and signage. A glue such as Selleys Kwik Grip is ideal for attaching your graphic creations to the strip.

Magnetic Strip Neodymium - 12.5mm x 1.5mm | Non-Adhesive | PER METRE | Supplied As Continuous Length (59185)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

NB: Ranges are indicative for product category, please check individual products for specific values within that range.

average rating 4.4 out of 5
Based on 7 reviews
  • 5 Stars
    5 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    1 Review
  • 1 Star
    0 Reviews
86% of reviewers would recommend this product to a friend
7 Reviews
Reviewed by Issy
I recommend this product
Rated 5 out of 5
Review posted

Awesome if you know how to use it

It's magnetic strength is very good. I'm using it to create custom made/3Dprinted socket set and wrench holders and it's just awesome to work with.

I noticed that on one side it's magnetic field is very strong (for it's size, obviously) and on the other is quite weak. This can be very handy if you're placing bits back to back, or need to isolate it somehow.

Also, it's so easy to cut with scissors that it just makes it a bliss to work with.

Don't forget to wash your hands afterwards, you don't want to scrub plasticised minerals all over yourself.

And don't try to bend it on tight corners. It has around of 3-5mm of min radius.
