Magnetic Recess Former D118 M12 Thread

Product code: MRF118

$272.74
$242.19and save 11%
$219.43and save 20%

Prices are GST Incl.

Volume pricing available on request

Magnetic Recess Former D118 M12 Thread

Product Code MRF118
Pull Force* 190kg
Weight 1500 gm
Dimensions Diameter:118mm

Magnetic Product Description:

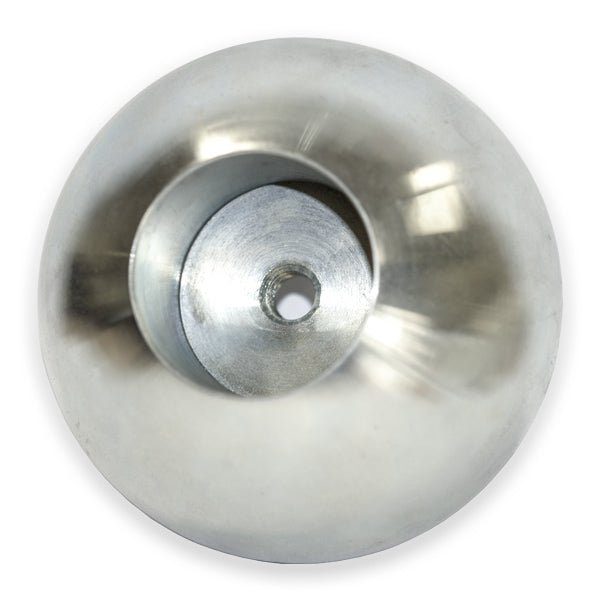

Our Magnetic Recess Former is a simple device to create a recess in Precast Concrete. Simply attach it magnetically to Steel Formwork in the desired location prior to casting. These are used where the lifting anchors are not accessible when casting. It has a diameter of 118mm with M12 Thread and a pull force of 190kg. It is identified by AMF Part Number MRF118.

Magnetic Recess Former D118 M12 Thread (MRF118)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
