Female Thread Neodymium Pot Magnet | Stainless Steel Coating | 30mm x 16mm

Product code: 93614

$56.92for 1 to 9 items
$48.86buy 10 to 99 itemsand save 14%
$39.61buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet | Stainless Steel Coating | 30mm x 16mm

Product Code 93614
Pull Force* 30 kg
Weight 47 gm
Style Rare Earth Female Thread Pot Magnet
Coating Stainless Steel
Direction of Magnetisation Axially magnetised
Dimensions Height:16mm, Diameter:30mm

Magnetic Product Description:

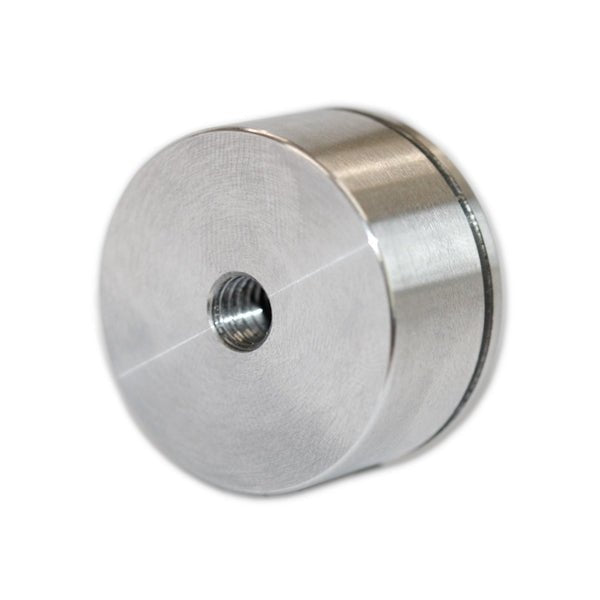

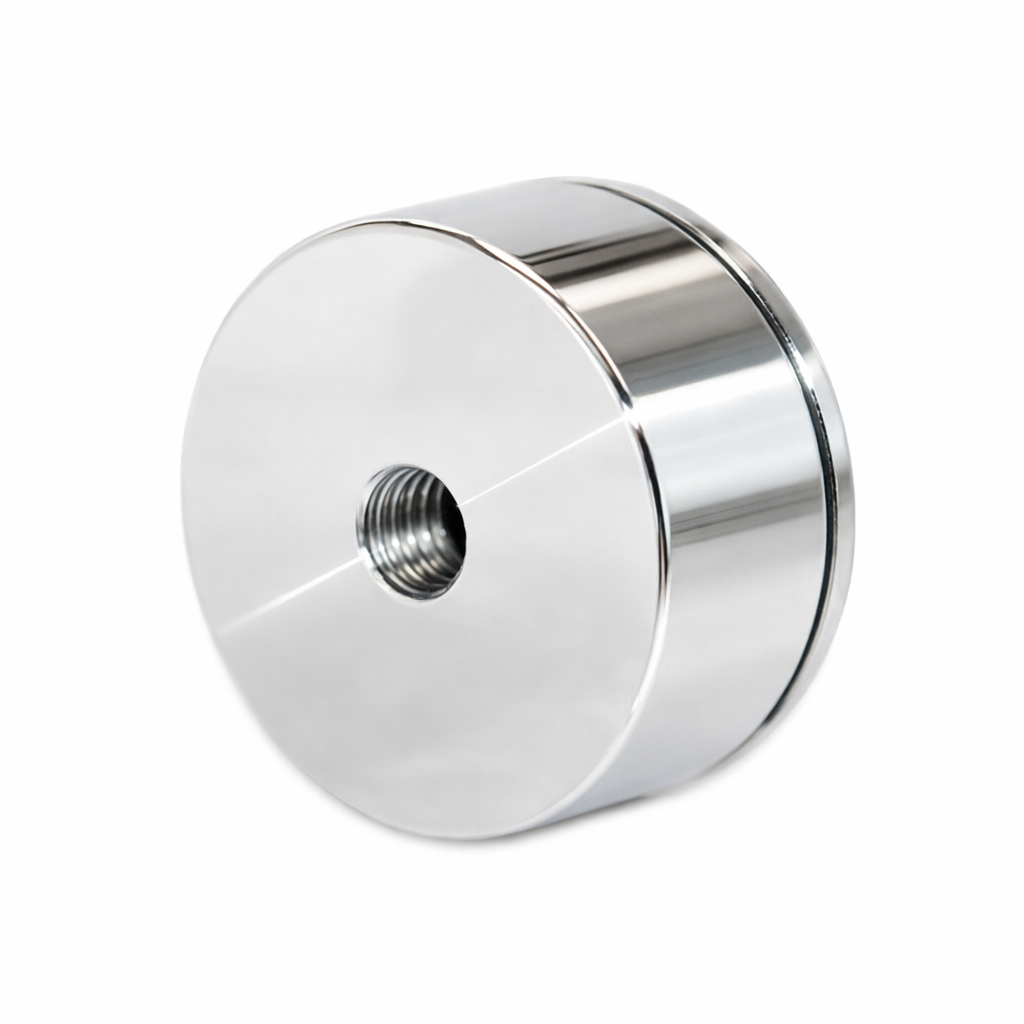

This Rare Earth Female Threaded Pot Magnet has a diameter of 30mm, a total height of 16 mm, and an M6 female thread. This pot magnet has a pull force of 30kg. It is identified by the AMF Magnet part number 93614.

Uses for our Female Thread Neodymium Pots with Stainless Steel Coating:

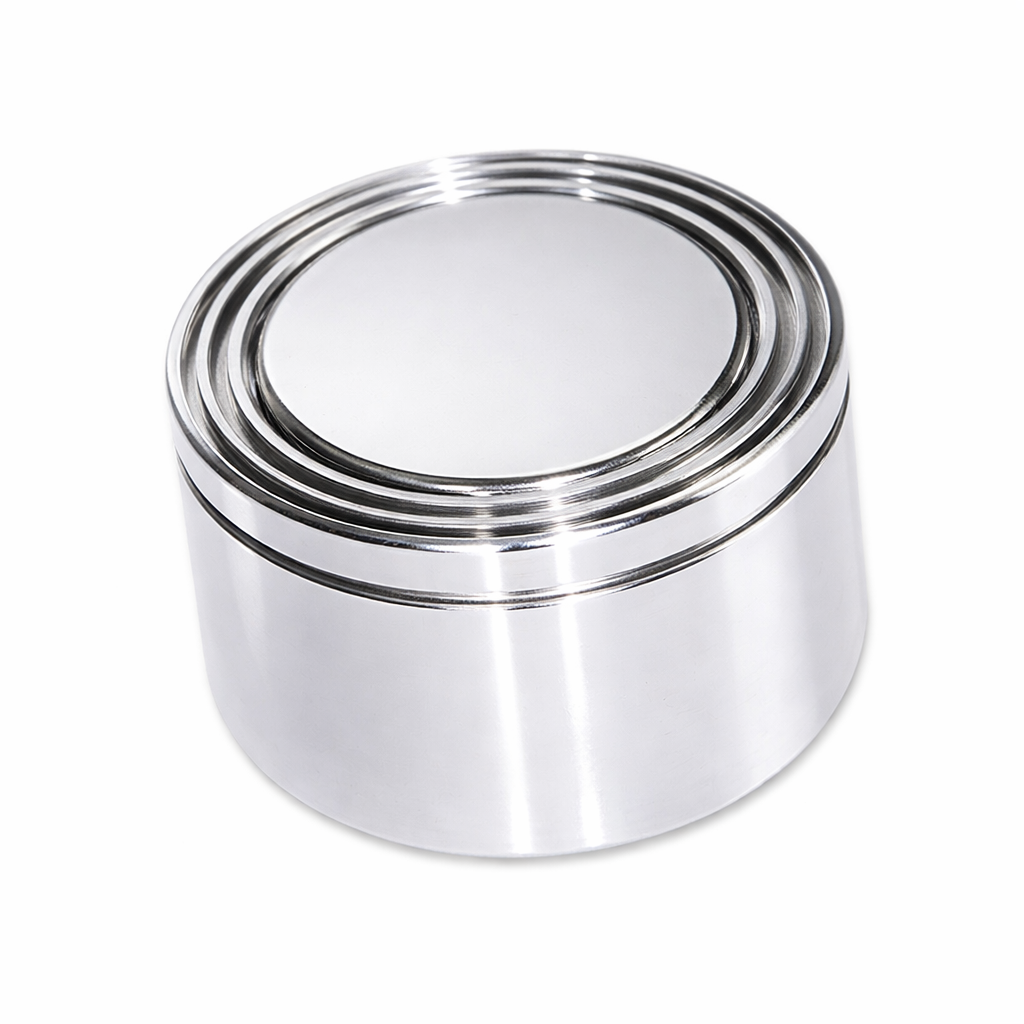

Our Rare Earth Female Thread Holding Pot Magnets are an extremely useful,  high strength Neodymium magnet in a stainless steel casing that provides extra protection against chipping, cracking, and corrosion. Inside the stainless steel casing sits a mounted Neodymium magnet. The casing changes the magnetic field produced by the magnet and deflects the field to create a strong single-sided holding magnet. These magnets offer excellent corrosive resistance due to their stainless steel casing, meaning they can be used in outdoor environments, marine, or harsh environments where the nickel plating would normally rust.

Female Thread Neodymium Pot Magnet | Stainless Steel Coating | 30mm x 16mm (93614)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50
Max Operating Temperature °C <=80
Remanence 1.4-1.46
Coercivity 14-14.6 >=836
Intrinsic Coercivity >=10.5
Max Energy Product >=875

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
