Female Thread Neodymium Pot Magnet | Steel Encased | 30mm x 16mm with ¼”-28 UNF Threaded Hole | N50

Name: Female Thread Neodymium Pot Magnet | Steel Encased | 30mm x 16mm with ¼”-28 UNF Threaded Hole | N50
Brand: AMF Magnets New Zealand
SKU: 93614A
Price: 90.14 NZD
Availability: InStock

Product code: 93614A

1 to 8 items

$90.14

9 to 99 items14% OFF

$77.38

100+ items30% OFF

$62.72

Total

$90.14

You save $0.00

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

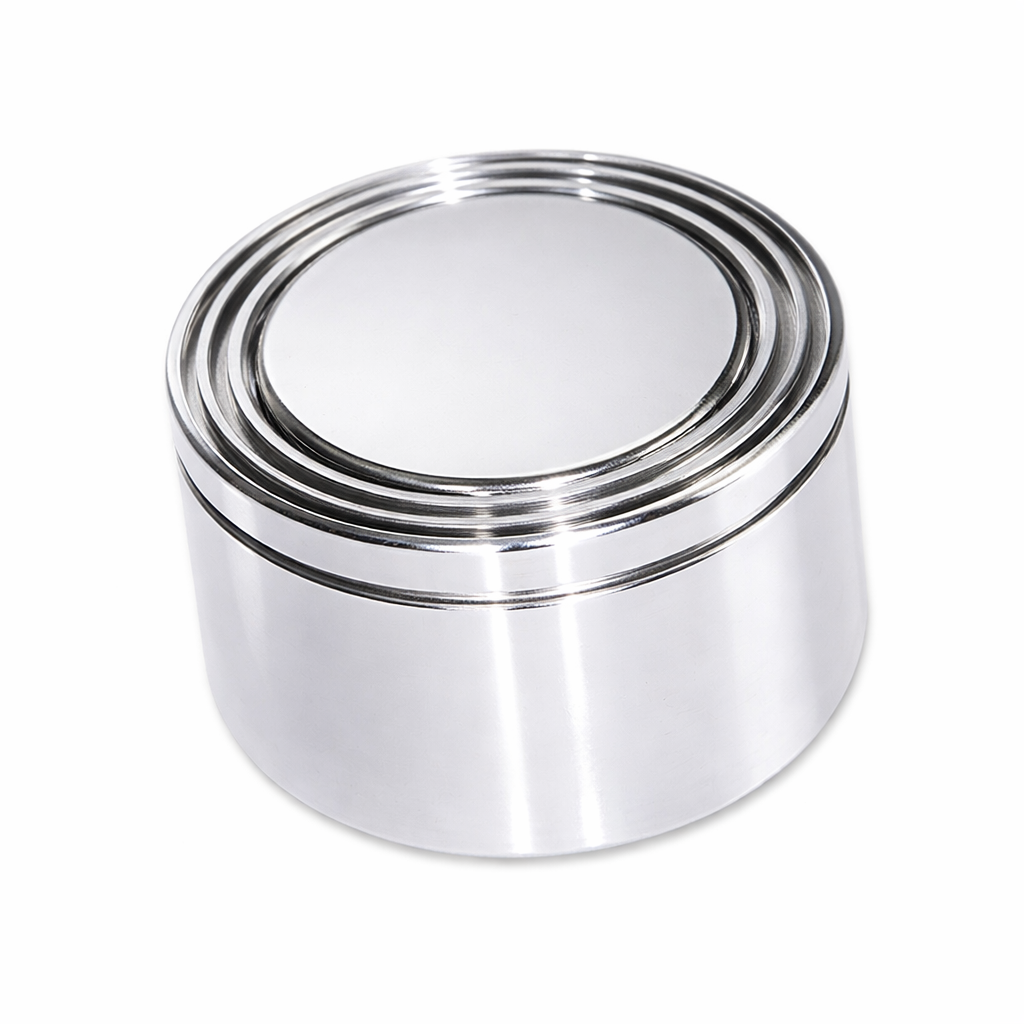

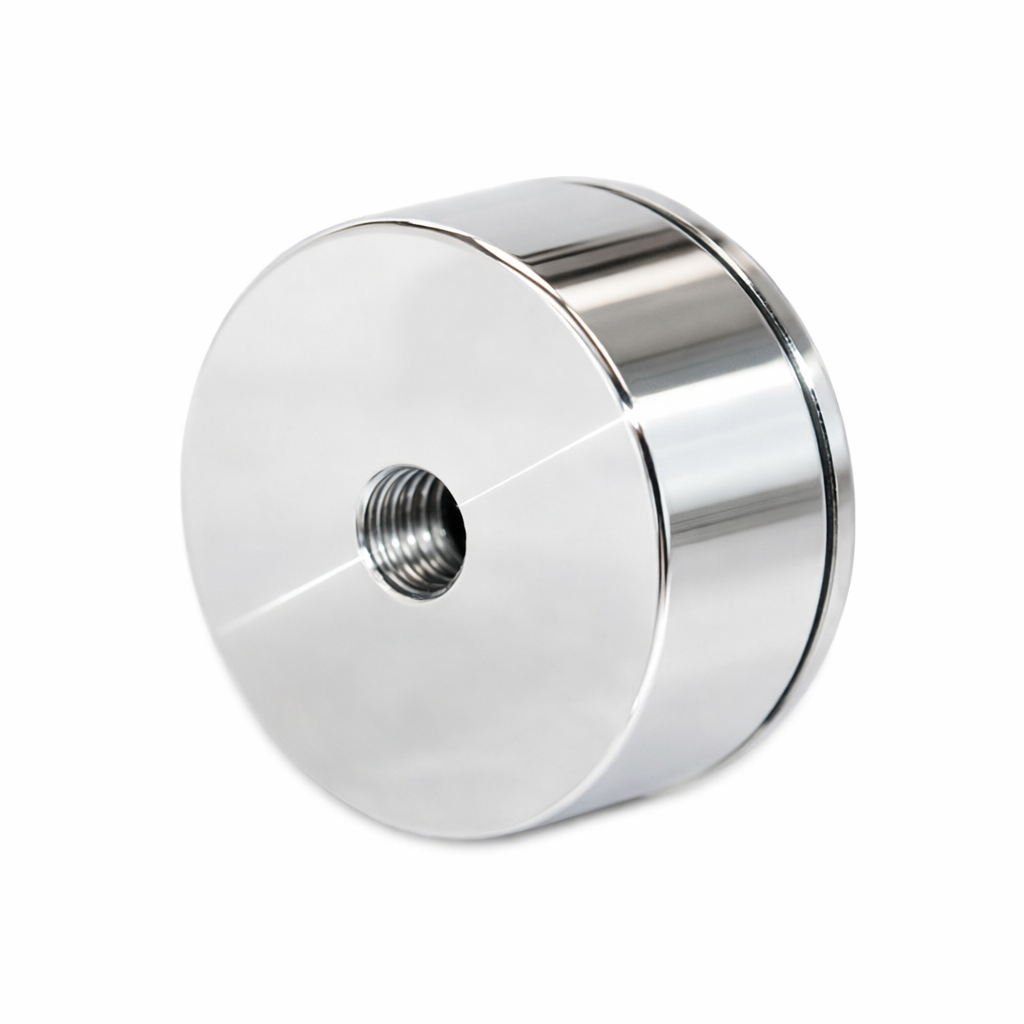

Female Thread Neodymium Pot Magnet | Steel Encased | 30mm x 16mm with ¼”-28 UNF Threaded Hole | N50

Product Code 93614A

Pull Force* 33 kg

Weight 47 gm

Grade N50

Housing Mild Steel

Dimensions Height:16mm, Diameter:30mm

*Measured against up to 10mm mild steel.

This female thread neodymium pot magnet combines compact size with exceptional holding strength, making it ideal for demanding industrial, workshop, and commercial applications. Encased in a durable steel cup, the high-performance N50 grade neodymium magnet delivers an impressive 40kg pull force under ideal conditions.

The 30mm diameter, 16mm high pot magnet is fitted with a 1/4" UNF half-internal female thread, allowing fast and secure attachment of compatible bolts, eyebolts, hooks, or custom fittings. Its notch base design improves stability and helps prevent rotation during installation or under load.

This magnet features a ¼”-28 UNF threaded hole with a depth of 10mm, designed for compatibility with imperial fasteners. Due to the fine imperial thread specification, standard M6 screws are not suitable for use. For proper fitment and optimal performance, a ¼-28 UNF bolt must be used instead of an M6 fastener.

The steel casing not only protects the magnet from impact and wear but also concentrates the magnetic field at the contact surface, significantly increasing holding power compared to standard magnets of similar size.

Key Features

Diameter: 30mm

Height: 16mm

Magnet Grade: N50 neodymium

Pull Force: 40kg

Thread: 1/4" UNF female thread (half internal)

Casing: Steel encased pot magnet

Base: Notch base for improved anti-rotation stability

Typical Applications

Magnetic mounting and clamping

Workshop jigs and fixtures

Hanging and suspension systems

Signage and display mounting

Industrial holding and positioning

This steel-encased female thread pot magnet offers a powerful, compact, and versatile magnetic solution where strong, reliable holding force and easy attachment are essential.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

This female thread neodymium pot magnet combines compact size with exceptional holding strength, making it ideal for demanding industrial, workshop, and commercial applications. Encased in a durable steel cup, the high-performance N50 grade neodymium magnet delivers an impressive 40kg pull force under ideal conditions.

The 30mm diameter, 16mm high pot magnet is fitted with a 1/4" UNF half-internal female thread, allowing fast and secure attachment of compatible bolts, eyebolts, hooks, or custom fittings. Its notch base design improves stability and helps prevent rotation during installation or under load.

This magnet features a ¼”-28 UNF threaded hole with a depth of 10mm, designed for compatibility with imperial fasteners. Due to the fine imperial thread specification, standard M6 screws are not suitable for use. For proper fitment and optimal performance, a ¼-28 UNF bolt must be used instead of an M6 fastener.

The steel casing not only protects the magnet from impact and wear but also concentrates the magnetic field at the contact surface, significantly increasing holding power compared to standard magnets of similar size.

Key Features

Diameter: 30mm

Height: 16mm

Magnet Grade: N50 neodymium

Pull Force: 40kg

Thread: 1/4" UNF female thread (half internal)

Casing: Steel encased pot magnet

Base: Notch base for improved anti-rotation stability

Typical Applications

Magnetic mounting and clamping

Workshop jigs and fixtures

Hanging and suspension systems

Signage and display mounting

Industrial holding and positioning

This steel-encased female thread pot magnet offers a powerful, compact, and versatile magnetic solution where strong, reliable holding force and easy attachment are essential.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
