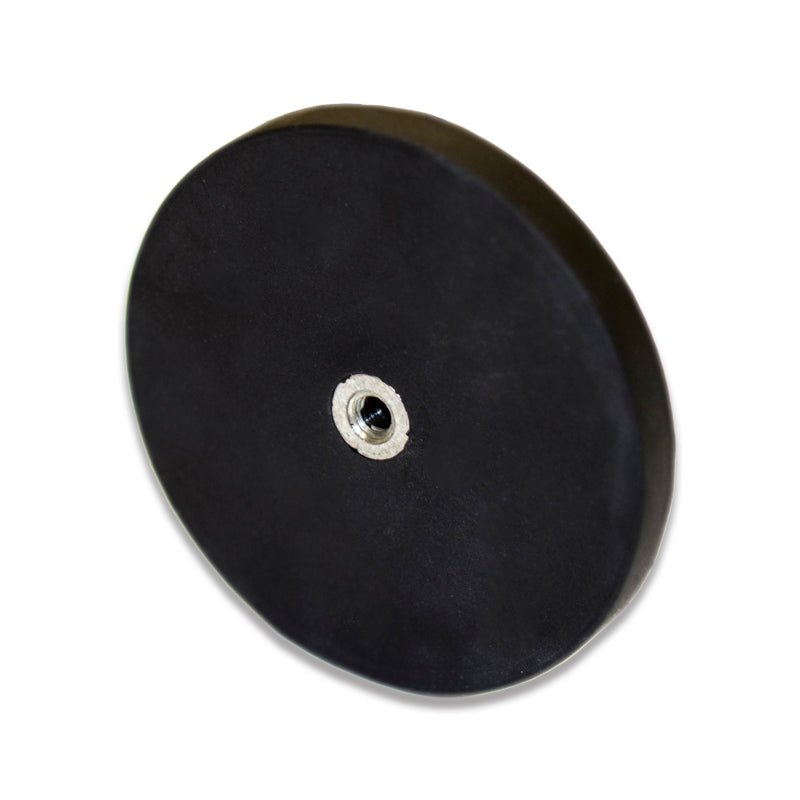

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case

Product code: RCND66F

$22.57for 1 to 9 items
$19.46buy 10+ itemsand save 14%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case

Product Code RCND66F
Pull Force* 18kg
Weight 110 gm
Style Rare Earth female thread pot magnet
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetised through the 8mm
Dimensions Height:8mm, Diameter:66mm

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 66mm, a thickness of 8mm, a M6 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 18kg and a weight of 110 grams. It is identified by the AMF magnet part number RCND66F. Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.

Uses for our Rare Earth female thread pot magnets:

These Rubber Coated Neodymium Pot magnets have a Female Thread allowing them to be attached to other material using a bolt. Rubber coating also resists corrosion and protects easily scratched surfaces from damage. These Pot magnets can accept an eyelet or hook screwed into its threaded central void, for suspending outdoor equipment, heavy duty gate and door latching, hanging signage and suspending guidelines or barriers onto metal structures without nails, screws, wire or glue. Rubber Coating protects painted surfaces from scratching and offers substantial long-term resistance to corrosion. Farmers, fishers, campers, food-truck operators, and emergency workers are able to, at a moment’s notice, create a fixing point on the outside of their vehicles for stringing up hazard tape, signage, lighting, p.a. sound systems, cooking equipment or any other paraphernalia.

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case (RCND66F)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 66mm, a thickness of 8mm, a M6 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 18kg and a weight of 110 grams. It is identified by the AMF magnet part number RCND66F. Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.

Uses for our Rare Earth female thread pot magnets:

These Rubber Coated Neodymium Pot magnets have a Female Thread allowing them to be attached to other material using a bolt. Rubber coating also resists corrosion and protects easily scratched surfaces from damage. These Pot magnets can accept an eyelet or hook screwed into its threaded central void, for suspending outdoor equipment, heavy duty gate and door latching, hanging signage and suspending guidelines or barriers onto metal structures without nails, screws, wire or glue. Rubber Coating protects painted surfaces from scratching and offers substantial long-term resistance to corrosion. Farmers, fishers, campers, food-truck operators, and emergency workers are able to, at a moment’s notice, create a fixing point on the outside of their vehicles for stringing up hazard tape, signage, lighting, p.a. sound systems, cooking equipment or any other paraphernalia.

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case (RCND66F)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
