Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread Cart

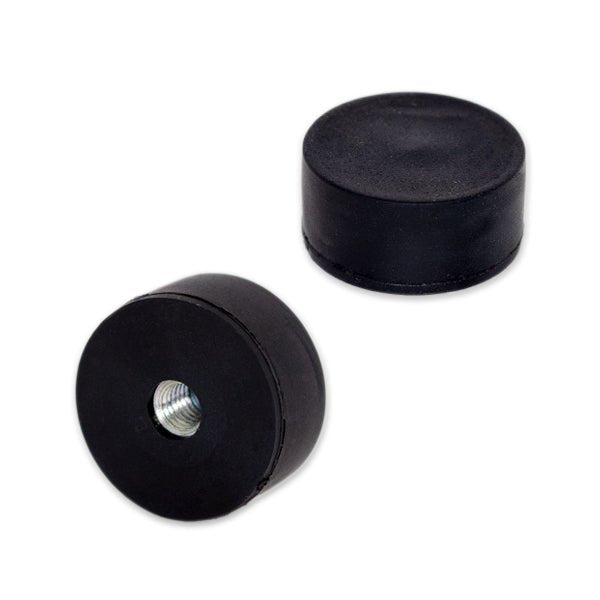

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread

Product code: PMYP-G22RC

Female Thread Neodymium Pot - Diameter 22mm x 6mm with Rubber Case
$6.21for 1 to 9 items
$5.35buy 10+ itemsand save 14%

Prices are GST Incl.

Volume pricing available on request

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread

Product Code PMYP-G22RC
Pull Force* 3.8kg
Weight 12 gm
Style Rare Earth female thread pot magnet
Grade N42
Direction of Magnetisation Axially magnetised
Dimensions Thickness:10mm, Diameter:22mm

Magnetic Product Description:

Rubber Coated Pot Magnet D22x10mm M5x6 internal thread, 3.8kg N42.

22mm Dia x 10mm Thick x M5 Thread Hole Rubber Coated Pot Magnet.


Uses for our Rare Earth female thread pot magnets:

  • The thread depth is 6mm with a flat bottom in the tapped hole.
  • This is important since we want the full 6mm of thread engagement.
  • N42 (NdFeB) neodymium magnet.
  • Rubber coated to increase slide resistance.
  • Each magnet can support 3.8kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread (PMYP-G22RC)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42
Max Operating Temperature °C <=80
Remanence Br(T) 1.3-1.35
Remanence Br(kGs) 13-13.5
Coercivity bHc(kA/m) >=836
Coercivity bHc(Oe) >=10.5
Intrinsic Coercivity iHc(kA/m) >=955
Intrinsic Coercivity iHc(Oe) >=12
Max Energy Product(BH)max(KJ/m) 318-350
Max Energy Product(BH)max(MGOe) 40-44
